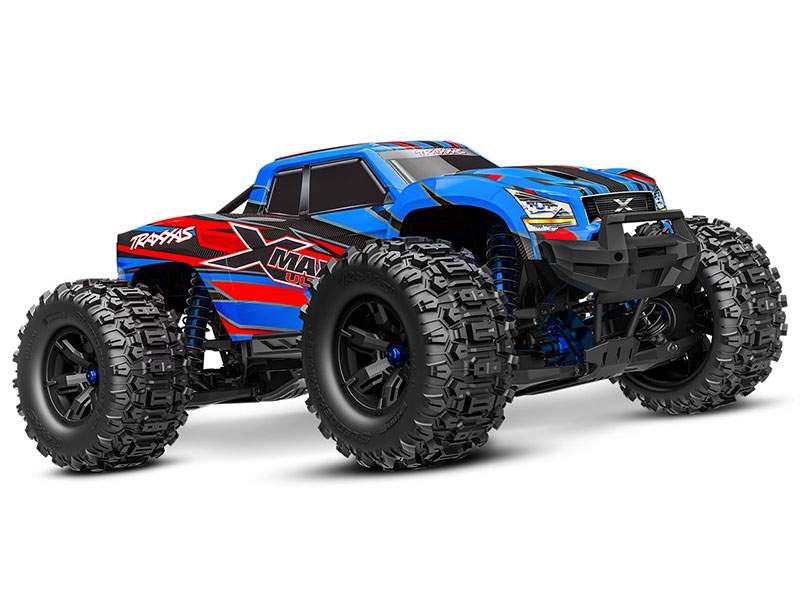

TRX77097-4-BLUEX Traxxas X-Maxx Ultimate – Blue X

ULTIMATE DURABILITY
How do you improve the toughest truck ever to wear the Traxxas name? You add aluminum—lots of aluminum! X-Maxx receives substantial aluminum upgrades in all key areas of performance: suspension, chassis, drivetrain, and steering to usher in a new era of strength and durability.

INCLUDED WIRELESS MODULE
A Traxxas Link™ Wireless Module comes standard on X-Maxx Ultimate to take full advantage of its on-board telemetry. The free Traxxas Link app allows you to make micro-adjustments to the transmitter and view real-time telemetry data like speed, RPM, and battery voltage on your mobile device.

BELTED TIRES
X-Maxx Ultimate’s belted Sledgehammer® tires deliver game-changing stability and control whether you’re slinging mud or setting speed records. The wide, open-block tread design won’t clog up with dirt or debris and the lightweight belting maintains the tire’s shape for a larger contact patch, more grip, and responsive handling at any speed.

• Length: 30.67 inches (779 mm)
• Front Track: 21.3 inches (540 mm)
• Rear Track: 21.3 inches (540 mm)
• Ground Clearance: 4.2 inches (107 mm)
• Weight: 22.20 pounds (9.5 kg)
• 25.06 pounds (11.39 kg) with two 4s 6700 mAh LiPo batteries
• Height (ride): 13.99 inches (355 mm)
• Wheelbase: 18.92 inches (480 mm)
• Shock Length: 7.4 inches (187 mm)
• Tires (pre-glued): Belted Sledgehammer® 8.4″ x 4.0″ (203 mm)
• Wheels: 4.3″ x 5.7″ (110×145 mm)
• Wheel Hex Size: 24 mm splined hex
• Speed Control: Velineon® VXL-8s™
• Motor (electric): Velineon 1200XL
• Transmission: Single-speed
• Overall Drive Ratio: 8.11 (stock, out-of-box)
• Differential Type: Sealed, hardened steel bevel, limited slip
• Gear Pitch: Module 1.0
• Chassis Structure/Material: Composite nylon tub
• Brake Type: Electronic
• Drive System: Shaft-driven 4WD
• Steering: Aluminum bellcrank
• Radio System: TQi™ 2.4 GHz transmitter with factory-installed wireless module
• Servo: Torque: 450 oz-in speed: 0.17 sec/ 60 degrees (6.0 volts)
• Top Speed: 50+ mph with two 4s LiPo batteries and optional gearing (sold separately)
• Battery Tray: 197 mm x 52 mm x 44 mm
• Required Batteries: 4 “AA” (transmitter) and 3-cell LiPo battery (x2) or 4-cell LiPo battery (x2)

What’s In The Box:

• X-Maxx Ultimate, Ready-To-Race model with Traxxas Big Block™ brushless motor
• VXL-8s waterproof electronic speed control with integrated telemetry
• Quick Start Guide
• TQi 2.4 GHz radio system with factory-installed wireless module
• High quality maintenance tools
